Smokeeter Model SE50



Download Literature  Owners Manual



Specifications:

Dimensions: 40-1/4" Long x 19-1/2" Wide x 20" High
Weight:  138 Ibs.
CFM:  600-1,500 CFM
Motor:  1/2 Horse Power
Amps:  7 amps
Mounting Method:  Ceiling / Wall

Smokeeter SE50

SE50 and SE40 Smoke eaters are the most popular models in the Smokeeter line. The SE 50 weighs 25 lbs more than the SE 40, provides airflow between 600-1500 CFM, and is almost 8 inches taller, making it ideal for larger spaces. This model has the capability to be ceiling hung, wall-mounted, or utilized as a tabletop unit. SE50 Smokeeters can be used alone or paired with other units to create a well-designed air pattern.
SE50 Smokeeters use ESP (Electrostatic Precipitator) technology to extract smoke, dust, pollen, bacteria, and other harmful particulates from the air. Particles are given an electric charge once drawn into the smoke eater, are then captured by collection cells, and finally sent through a carbon after-filter to ensure fresh air is dispersed for your visitors and staff.

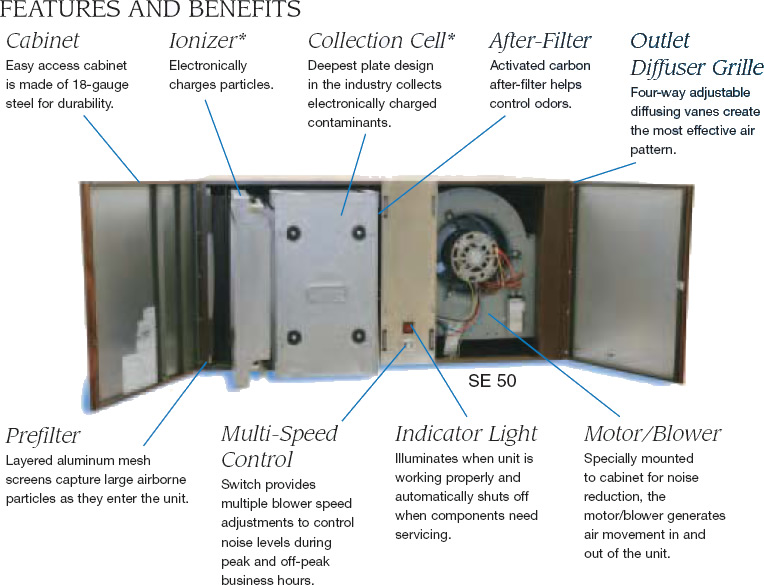

SE 50 Smokeeter Features

  • Cabinet - 18-gauge, easy access
  • Motor/Blower - Generates air movement in & out of the unit
  • Pre-filter - Captures large airborne particles
  • Ionizer - Electronically charges particles
  • Collection Cell - Collects charged contaminants
  • After-Filter - Activated carbon helps control odors
  • Outlet Diffuser Grill - Creates the most effective air pattern
  • Multi-Speed Control - Controls noise levels
  • Indicator Light - Auto shuts off when maintenance is needed
  • Jump To Units | Jump To Filters | Jump To Parts
    Units
    SKU Description
    01-10075-0001 Smokeeter Model SE 50
    590-1500 CFM / 1,500-2,200 Sq. Ft
    Call For Pricing
    Filters
    SKU Description
    33-0007 Carbon Filter 18" x 18-3/8" x 1/4" (also in 1500/BC/LS/CC/D C/PC)
    $47.63
    Qty:
    33-0001 Filter-Mesh 18" x 18-3/8" x 7/8" (also in
    1500/BC/LS/CC/D C/PC)
    $51.03
    Qty:
    45-0007 Smokeeter Detergent
    30lbs. Box (Makes 300 Gallons)
    $97.50
    Qty:
    02-0086-S Collection Cell-CP (also in BC/1500/LS/CC/DC/PC)
    Call For Pricing
    Replacement Parts
    SKU Description
    32-0085 Blower-Direct Drive 10-10 (also in LS/1500)
    Call For Pricing
    20-0553 Bushing-Strain Relief (use 2/02-0131)
    Call For Pricing
    20-0569 Capacitator-12.5 MFD @ 370v
    Call For Pricing
    20-10090-0001 Capacitor, 5 FD
    Call For Pricing
    02-10651-0001 Center Post Assembly, SE 50, 3-Speed
    Call For Pricing
    02-2727 Center Post Assy.
    Call For Pricing
    03-0733 Door-Blower Access w/hinge & nameplate
    Call For Pricing
    03-0732 Door-Compartment Access w/hinge (39-0044)
    Call For Pricing
    30-0202 Fastener-Nameplate
    Call For Pricing
    33-0135 Grille-Outlet 13" x 14-3/4" (Black)
    Call For Pricing
    33-0039 Grille-Outlet 14" x 16" (Silver)
    Call For Pricing
    32-0013 Grommet-Rubber, Motor Mount
    Call For Pricing
    10-2799 Hanging Bracket (also in SE 40/MC)
    Call For Pricing
    03-0030 HV Lead Assy (also in BC/1500, was 02-0170)
    Call For Pricing
    37-0013 Insulator-Ceramic (1-1/2" L x 5/8" dia.)
    Call For Pricing
    37-0004 Insulator-Ceramic (2-1/2" L x 5/8" dia.)
    Call For Pricing
    37-0008 Insulator-Disk, Cell
    Call For Pricing
    37-0063 Insulator-Stand0Off (1" L x 5/8" dia.)
    Call For Pricing
    02-0089-S Ionizer Assy.-7 Wire, AF (also in BC/1500/LS/CC/DC)
    Call For Pricing
    03-0559 Ionizer Wire Springs (Set of 20)
    Call For Pricing
    39-0120 Knob-Switch, Vari-Speed
    Call For Pricing
    39-0097 Knob-Switch, Vari-Speed (Chrome)
    Call For Pricing
    20-0229 Light-Pilot, Amber Lens (Black)
    Call For Pricing
    30-0030 Locknut, Nylon 1/4-20
    Call For Pricing
    39-0105 Magnetic Catch-Door
    Call For Pricing
    22-0087 Motor
    Call For Pricing
    22-10018-0001 Motor, 1/2 HP, 115/1/60, 5-Speed
    Call For Pricing
    02-10650-0001 Motor/Blower Assembly, SE 50, 3-Speed
    Call For Pricing
    41-2347 Nameplate-CRYSTAL-AIRE (Black & Silver)
    Call For Pricing
    41-0674 Nameplate-SMOKEETER
    Call For Pricing
    10-0157 Plate-Cell Narrow (hot)
    Call For Pricing
    10-0158 Plate-Cell Wide (ground)
    Call For Pricing
    10-0348 Plate-End
    Call For Pricing
    20-2922 Power Cord (Post-May 1997)
    Call For Pricing
    02-1310 Power Cord (Pre-May 1997, also in
    GC/400/800/SE 20, 40/MC)
    Call For Pricing
    21-1218 Power Pack 115v Comm'l (also in HRVS)
    Call For Pricing
    03-0849 Power Pack Conversion Kit (21-1218 for
    21-0058 Power Pack)
    Call For Pricing
    10-0570 Rail-Ionizer, 7 Wire (also in BC/1500/LS/CC/DC)
    Call For Pricing
    35-0045 Rod-Cell
    Call For Pricing
    35-0067 Spacer-Cell
    Call For Pricing
    36-0008 Spring-Contact (Cab to Ionizer/Cab to Cell)
    Call For Pricing
    36-0077 Spring-Ground
    Call For Pricing
    02-1326-SP Switch-Control, Vari-Speed
    Call For Pricing
    20-0560 Switch-Interlock w/arm
    Call For Pricing
    03-0555 Wire-Ionizer w/looped ends (Set of 9)
    Call For Pricing
    02-2542 Wiring Harness
    Call For Pricing

    SE 50 smoke eaters use less horsepower than media units allowing them to operate quietly and save energy. Not only are these units cost-efficient, they are also 35% more effective in capturing submicronic particles. The SE50 is designed with twice the collection surface space which is why they decrease clean up and maintenance. Their featured aluminum collection cell prolongs filter life and minimizes contamination build-up on furnishings, walls, and windows.
    Get started on improving the air quality of your establishment and benefit from a healthier, cleaner environment. If you have any questions, or if you'd like to get started on your free quote, get in contact with us today at (866) 651-9761 or email info@aircleaningspecialists.com.

    SE 50 Smoke Eaters for:

  • Cigar Bars
  • Hookah Bars
  • Bowling Alleys
  • Bars
  • Restaurants
  • VFW Halls
  • American Legion Posts
  • Casinos
  • Bingo Halls
  • Moose Lodges
  • Elk Lodges
  • Nightclubs
  • Race Tracks
  • and more!
  • Smokeeter® is a registered trademark of United Air Specialists
